     SIMULTANEOUS TAPE REPLICATION S-IMAGER
Tape Duplication
When One Copy Just Isn't Enough

Increased Productivity
Simultaneously create two identical backup tapes in real-time at up to 160MB/second with no additional system overhead OR create tape copies offline at full streaming speeds.
Half Height
Internal 5 1/4" Half Height
1U Rackmount
Single or Dual Controller
TableTop Enclosure
Table Top
Increased Data Availability
Recover valuable data even if one tape becomes lost or damaged.
Increased Backup Reliability
Either copy can be used independently for recovery.  Backup continues even if one tape drive/media fails.
Robotics Support
Mirror within a single tape library (LibraryMaster™) or across two tape libraries (RAILMaster™).
Disaster Recovery
Automatically back up data to two mirrored tapes.  Restore from one tape allowing mirror copy to be taken offsite.
100% Software Transparency
No software changes of any kind are required.  The S-imager is plug and play with "ALL" existing tape backup software.
Remote Management
An optional full featured Graphical User Interface software program for remote management and monitoring of all online and offline modes.
Plug Compatibility
The S-Imager controller is presented to the host as a single tape drive or tape library providing plug and play compatibility with any operating system or hardware platform.  Compatible with SCSI-1, SCSI-2, SCSI-3 tape protocols.
      S-Imager

SPECIFICATIONS

OFFLINE or Stand Alone Operations
The S-Imager controller has built in hardware utilities for:
  Tape Copy
  Tape Compare
  Tape Verify
  Tape Drive Diagnostics
  "Self Test" Diagnostics

HOST INTERFACE
The S-Imager Tape Mirroring controller is available with LVD Ultra3 160 Wide SCSI host interface.
SCSI Interface
Conforms to the SCSI-3 protocol while maintaining compatibility to SCSI-1 and SCSI-2, 8/16 bit SCSI.  LVD Ultra3 Wide synchronous transfers provide 140 MB/sec sustained data transfer rate.
DEVICE INTERFACE
The S-Imager Tape Mirroring controller features two SCSI device interfaces.  All major tape drives and tape libraries are supported.
SCSI Interface
Two parallel SCSI LVD Wide Ultra3 device interface channels operate a set of tape devices at high speed for maximum of 140 MB/sec sustained data rate.  Conforms to the SCSI-3 protocol while maintaining compatibility to SCSI-1 and SCSI-2, 8/16 bit SCSI.
Operator Console
The front panel operator console features a 4 line by 20 character display and a 4 push button key pad.

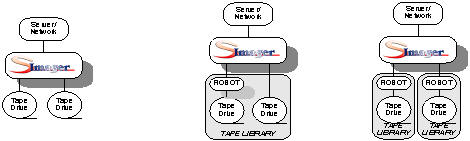

TAPE Duplication Configurations

Standalone                       LibraryMaster™             RAILMaster™   Tape Drives                      Single Library                 Dual Library

 MODEL INFORMATION
Device Types S-Imager Packaging
Drives Library Libraries
TD081 TM081 TDL081 TML081 TDR081 TMR081 Controller board only
TD881 TM881 TDL881 TML881 TDR881 TMR881 5 1/4" Half Height internal packaging with front panel operator console
TD1081 TM1081 TDL1081 TML1081 TDR1081 TMR1081 Table Top external packaging with power supply and front panel operator console
TD2181 TM2181 TDL2181 TML2181 TDR2181 TMR2181 Single Controller Board, 1U high 19 inch rackmount with power supply and front panel operator console
TD2281 TM2281 TDL2281 TML2281 TDR2281 TMR2281 Dual Controller Boards,1U high 19 inch rackmount with 2 power supplies and 2 front panel operator consoles
TDXXXX - Stand Alone         TMXXXX - Online Mirroring XXL = LibraryMaster
XXR = RAILMaster
DIMENSIONS Width Depth Height
Board 5.50" 7.80" 0.50"
5 1/4" Half Height 5.75" 9.20" 1.67"
Table Top 9.75" 11.00" 2.50"
Rackmount 17.00" 11.00" 1.75"
ENVIRONMENT (Exclusive of Drives)
Input Voltage +5VDC, 10%, 3.5 amps, max
Temperature Operating/Non-operating (5 degree C to 50 degree C, -40 degree C to 60 degree C)
Humidity Operating/Non-operating (10% to 90% non-condensing)
WARRANTY One Year
